How to Master Material Zones: Tutorial Guide

Authors:

Understanding Material Zones provides a whole range of possibilities to customize your existing clothing content, and they are an essential tool for content creators. In this tutorial video set, Published Artist Nelmi will show you how to master Material Zones in Daz Studio AND the applications in her content creation stack: Marvelous Designer, ZBrush, and Substance Painter.

Nelieta (aka Nelmi) will show you this complete guide of how to create material zones so that you can:

1. Reuse older content (clothing and props) that can be used for dForce
2. Learn the process to aid you to in creating your own clothing/props
3. Apply multiple textures to 3D content
4. Understand a core and essential process for content creation in order to vend content successfully

This is for you if ...

You are newcomer to content creation for Daz Studio
You’d like to utilize older 3D content in your library
You are familiar with the concept of material zones but have not explored all the options and potentials of these

This is for you if you want to accomplish ...

Full control over your own material zones
Saving money by reusing older content
Using material zones in other 3D content modeling programs (eg MD/ZBrush)
Better understanding a key foundational principal of content creation

Tutorial Content

Total tutorial video running time: 2 hours 58 minutes

Introduction

About Nelieta’s content creation background and the tools
Marvelous Designer
Daz Studio
ZBrush
Substance Painter

Material Zones and Surfaces

What are Material Zones?
What are Surfaces?
The importance of Material Zones and Surfaces in 3D Content Creation

Material Zones in Marvelous Designer

How to set up Material Zones in Marvelous Designer
Working with the Property Editor in Marvelous Designer
Setting up more than one Material Zone
A quick look at the UV map
Exporting the obj to Daz or other modeling programs

Material Zones in Daz Studio

Importing the obj into Daz
More about the Tool Settings Pane in Daz
Working with the newly created Material Zones (from MD)
Renaming the Surfaces or combining surfaces
Assigning textures to the Material Zones in the Surfaces Panel
Assigning dForce settings to each material zone

Advanced options in Daz Studio

Obj with no material zones
Importance of a Clean Mesh with Quads
Working with the Geometry Tool in Daz

The Geometry Tool in Daz

Selecting Polygons to create material zones or surfaces.
Selection Modes in the Geometery Editor Tool.
Options in the Geometry Tool that Nelmi uses
Creating a Loop.

Material Zones in ZBrush

Importing the obj into ZBrush
Activating the Polyframe
Polygroups and Auto Groups with UV
Splitting into Subtools and Masking the new groups
Create new UV map
Export the new obj
Problems with material zones and GOZ

Working with Material Zones in Substance Painter

Importing the obj into Substance Painter
Applying textures to the surfaces
Importance of UV Map and Surface Setup before import

Conclusion

Material Zones create a lot of possibilities to assign new surfaces to old clothing
Important tool for content creators
Texture artists need more material zones
A worthwhile and relatively easy tool to learn
A word of caution about creating too many material zones

Tutorial Sample

About the Presenter: Nelieta Van Der Merwe (aka Nelmi)

Nelieta is a 3D content creator, born and bred in South Africa and currently based in Cordoba, Argentina. She has a formal education in Corporate Finance and worked as a Commercial Financial Director for a large steel company in a previous life.

She is passionate about photography and started out in the 3D world by creating PBR textures from her own photos. That gradually progressed to Daz Iray Shaders and the creation of texture add-ons for 3D clothing and content.

Learning how to make and rig 3D clothing was not an easy task, and each project is a learning curve. She likes to challenge herself and focuses on quality 3D content.

Nelieta uses Marvelous Designer, Daz Studio, ZBrush, Photoshop, Illustrator, and Substance Painter.

Nelieta is a firm believer of sharing one's knowledge, which is the road to empowerment. She loves traveling and exploring different cultures, watching crime movies on Netflix, and an early morning cup of coffee. She speaks three languages: Afrikaans, English, and Spanish.

What's Included and Features

How to Master Material Zones: Tutorial Guide
Video 1 : 27 minutes (.MP4)
- 00:02 Introduction and Nelmi’s background as a digital artist
- 00:03 Nelmi’s clothing content she has created so far
- 00:04 Nelmi’s tool set for creating content.
- 00:06 What we’ll learn in Marvelous Designer
- 00:05 About the lack of material zones in content
- 00:06 What are surfaces?
- 00:09 How designing material zones from the beginning is important

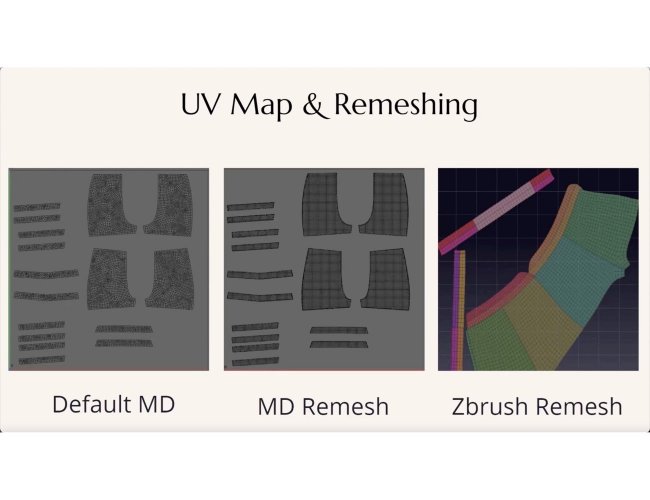

- 00:10 Remeshing in Marvelous Designer vs remising in ZBrush
- 00:11 Case study : Designing and making the Orion Clothing Set
- 00:11 Inside Marvelous Designer : Quick introduction to Marvelous Designer
- 00:13 Changing the 3D mesh to quads and why important
- 00:15 Considerations in the design of the Orion clothing set
- 00:17 Working out where material zones should be and how to do inside MD
- 00:19 Designing and defining the material zones
- 00:20 The MD Property editor : looking at the parameters and maps
- 00:22 Reflections, transformations
- 00:23 Physical property presets -> what will affect DAZ when the clothing is brought in.
- 00:26 Why ti use “default for simulation” in MD for DAZ content.
Video 2 : 1 hour (.MP4)
- 00:00 Case study - flowing dress
- 00:02 In MD : Checking how material drapes
- 00:04 Clothing from ArtStation for DAZ can be cheap but tends not to be optimised for DAZ and substandard
- 00:05 Mesh density recommendations for clothing models
- 00:08 Note that there is no bridge between MD and DAZ
- 00:13 Particle distance recommendation; what’s helpful for dForce.
- 00:17 MD great for creating the morphs
- 00:19 UV editor demonstration
- 00:21 Spend enough time on material zones before bringing into DAZ
- 00:24 Export from MD to DAZ as OBJ. Recommended export options
- 00:27 MD Subdivide/Freeze /Solidify material brush option is useful, esp subdivide - helping to maintain features of clothing
- in DAZ
- 00:32 In DAZ Studio -> importing from OBJ options recommended

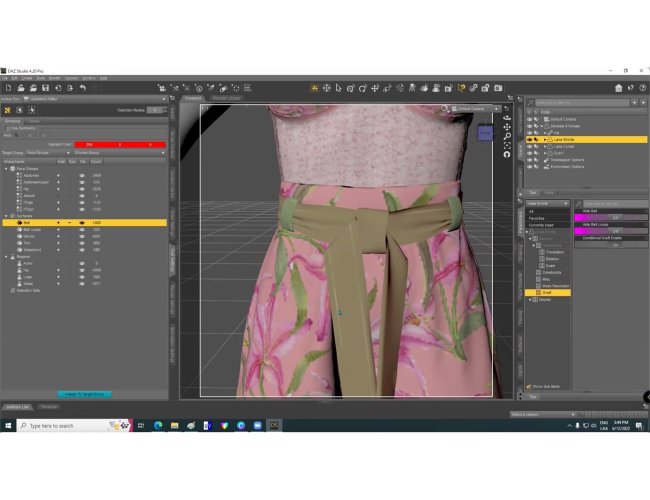

- 00:35 Now go to the geometry editor and see the surface carried over from MD, the material zones.
- 00:38 Reinforcing the need to design material zones before bringing into DAZ.
- 00:39 Combining surfaces
- 00:41 There is no undo in the geometry editor!
- 00:42 Watch out for deleting layers / selected polygons
- 00:46 Case study : The day out clothing model - example of good topology
- 00:49 Exploring the geometry editor further.
- 00:54 FBX/OBJ pros and cons exporting from MD
- 00:59 Seam lines need to be watched in terms of dForce and requires good topology to avoid problems.
Video 3 : 1 hour and 31 minutes (.MP4)
- 00:00 Recap of what learned in previous sessions
- 00:04 UV map and baking of maps
- 00:06 in MD : recommendation on quad meshes
- 00:08 Patch topology
- 00:10 Watch for sewing lines when topology is changed
- 00:11 Lose the welds, so you have to re-sew the lines
- 00:12 Watch for triangle polys - not good for dForce
- 00:14 MD recommends to take into another application for retopology such as ZBrush.
- 00:22 About retopology
- 00:24 Import OBJ from DAZ - fits clothing automatically on body shape
- 00:29 DAZ Studio -> import from MD

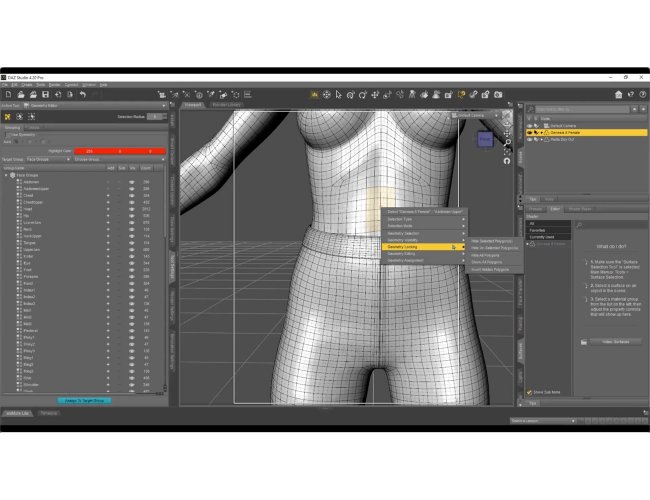

- 00:31 Geometry editor - using select loop
- 00:33 Creating different surfaces with the geometry tool
- 00:35 Create surface from selected
- 00:37 Three different ways of selecting geometry tool functions
- 00:40 Case study : Nelmi’s latest creation - designing for material zones
- 00:43 Update vertex positions
- 00:46 Hiding the belt loops
- 00:52 dForce considerations on Nelmi’s clothing set
- 00:54 About weight maps
- 00:55 Showing the scarf simulation
- 00:57 About using the dForce surface adjuster
- 01:00 dForce master product - helps with explosions
- 01:01 In Substance Painter - about the license options
- 01:03 In Substance Painter -project folder
- 01:06 Useful Riversoft Arts script - allocate color coded maps to your UV maps
- 01:18 In ZBrush - subtotals
- 01:21 Merge down and split
- 01:22 Mask
- 01:24 GO-Z
- 01:35 Summary of this session
PDF Document providing searchable version of this tutorial set
- MasteingMaterialZonesSearchable (link included) .PDF
